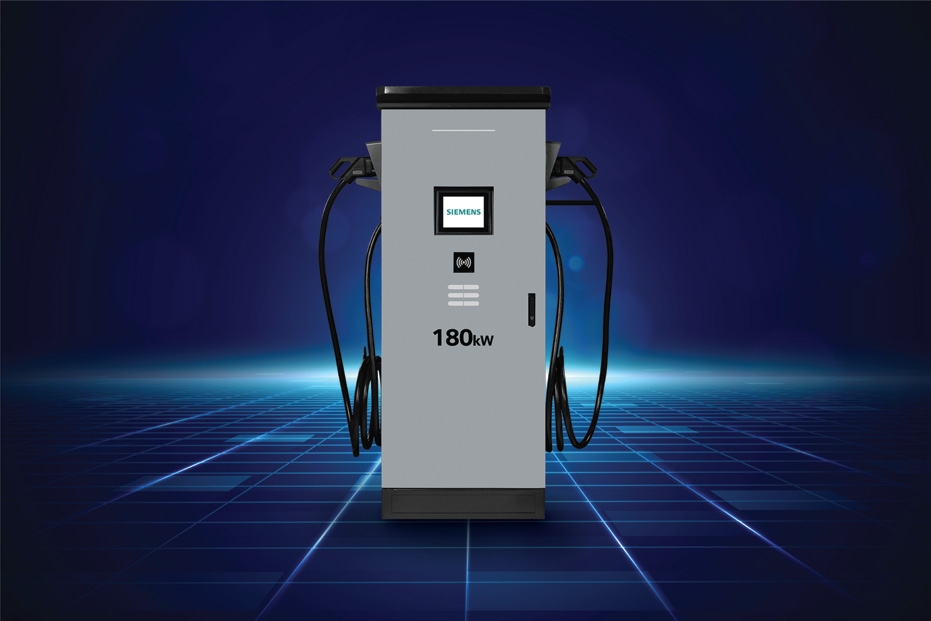

180Kwh Dual Gun Ccs2 Dc Fast Ev Charger

Price 1550000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

180Kwh Dual Gun Ccs2 Dc Fast Ev Charger Specification

Charger Type
DC Fast Charger

Vehicle Type
Electric vehicle

Charger Capacity
180 Kilowatt

Frequency
50 Hertz (HZ)

Origin
India

180Kwh Dual Gun Ccs2 Dc Fast Ev Charger Trade Information

Minimum Order Quantity
1 Number

FOB Port
DC Fast Charger

Supply Ability
200 Per Month

Delivery Time
10 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
WOODEN BOX

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ARAI

About 180Kwh Dual Gun Ccs2 Dc Fast Ev Charger

The 180Kwh Dial Gun CCS2 DC Fast EV Charger is a high-powered charging solution for electric vehicles. With a motor power of 180 Kilowatt (kW), it can charge electric vehicles with range of 50-70km in just a short amount of time. The charger is compatible with electric vehicles of various types, thanks to its CCS2 DC charging standard. The charger is manufactured in India and comes with rechargeable batteries, ensuring that it can be used even in areas without a reliable power supply. This product is perfect for individuals and businesses looking for a reliable, high-powered charging solution for their electric vehicles.

Charger type	DC fast charger
Charger capacity	120 kilowatt (kw)

	Parameters	Requirements
General Information	EV Charger Type	DC CCS-2
	Charger Capacity	180KW Commercial Charger
	Model Name	HSEF-180K(D)2G(CCS2)W 1000S
	Mounting & Cable routing	Floor-Mounting & Bottom Intel wiring
Input Requirement	AC Supply System	3-Phase,5 Wire (3P, N, PE) AC System
	Input voltage & Current	AC400V -/+ 15% & 280 Amp
	Wires	5 Wires (L1, L2, L3, N, PE)
	Frequency	50Hz / 60Hz
Output Power	No of outputs	02
	Output Connectors	CCS-2 female connector
	Charging Interface	IEC 62196, 61851, SAE J 1772, CHAdeMO
	Output Voltage & Current	200 VDC - 1000 VDC & 150 Amp Max
	Power Factor	> 0.99(50% load above)
Environment.	Ambient & Storage Temperature	25 degree to 55 degrees & -25 deg C to 75 deg C
	Altitude & Humidity	<2000 Mtr & 5% to 95%, non-condensing
	Cooling Method	Air Forced Cooled
User Interface & Display	Charging Type	HMI/APP/CMS
	Display & Language	7" Display & English
	Push Button	Emergency Stop
	User Authentication	Mobile / QR Code / RFID / Password login
	Metering Information	Consumption Units(kWh)
Communication	Network Connectivity	LAN/GSM/Wi-Fi
	Firmware (between EVSE & CMS) & Connectivity	OCCP v.1.6 or above
	Communication between charger & vehicle	PLC Based Communication
	Updates	Through remote connection up to 2.0 J
Mechanical	IP Rating	IP54 / IK 10
	Cable Length & Weight	5 Mtr & 320kg
	Dimension	7501600556mm
	Enclosure materials	Carbon steel
	Protection & Safety Parameters	Over Current, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, Door opening protection etc.
	Warranty	12 Months
